LOA: 26' LWL: 21'3" Beam: 8'2"
Displacement: 6,800lbs Draft: 3'10" Ballast: 3,5000lbs
Engine(s): Single Engine(s) HP: 10 Engine Model: Yanmar 1GM10
Hours: 800 Cruising Speed: 5 knots Max Speed: 6 knots
Fuel: 12 gallon Water: 10 gallon

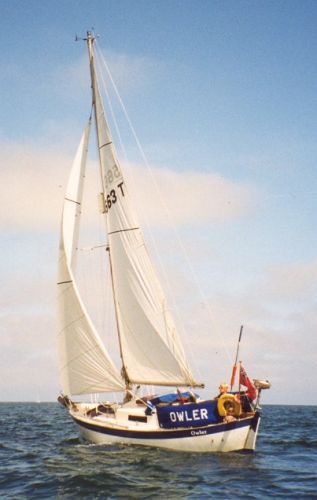

Off-white GRP double ended hull with dark blue styling line.
Moulded in non-skid pattern on deck and coachroof.
Teak & teak faced marine ply interior joinery with melamine faced bulkheads and galley work surfaces.
Long traditional keel with encapsulated lead ballast.
Keel / hull hung rudder with tiller steering.

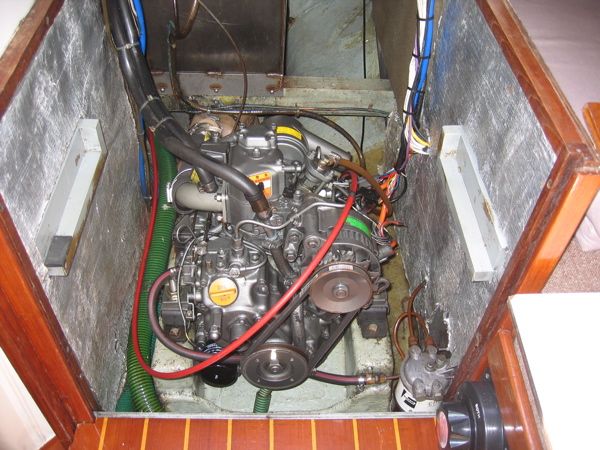

1998 Yanmar 1GM10 single cylinder 10hp diesel engine.
Raw water cooling.
Single lever controls with direct drive to a 2 blade fixed pitch propeller through a mechanical reduction gearbox with reverse.
2 x 60ah 12v lead acid batteries charged by engine driven alternator or battery charger through 240v shore power system with 3 outlets below.
12v lighting throughout.
Tricolour nav lights.
Deck flood light.
1997 mainsail, jib, storm jib & cruising shute by Ratsey & Lapthorne.
Genoa by Team.
1998 blue mainsail cover.
Spars & Rigging
Fractional Bermudan sloop. Silver anodised alloy deck stepped single spreader mast with slab reefing boom and spinnaker ploe by Proctor.
1996 1 x 19 s/steel wire standing rigging.
Terylene running rigging - most replaced 2002/5.
Self tacking jib boom.
* Plastimo Contest bulkhead type helmsman's compass.
* Autohelm ST50 Tridata echo sounder.
* Wind speed & wind direction.
* 2004 stereo radio/CD player.
* Seavoice RT550 R/T with cockpit speaker.
* Philips AP8 GPS.
* NASA navtex.
* 2003 Simrad TP10 12v tillerpilot.

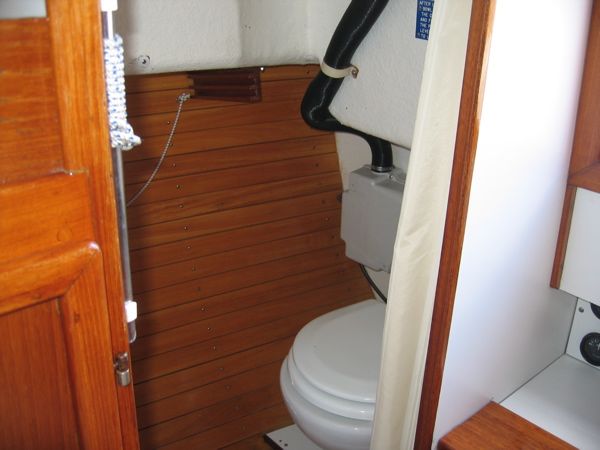

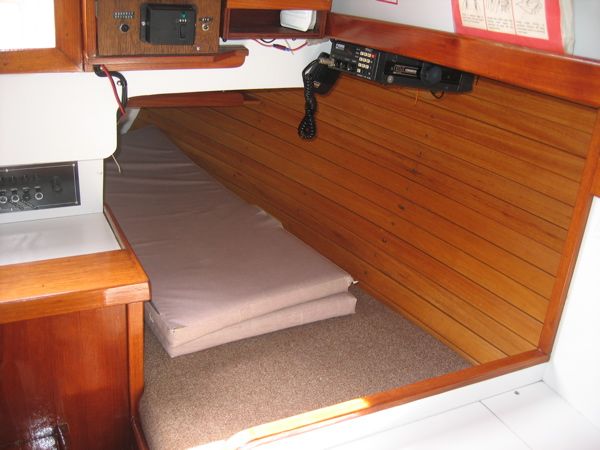

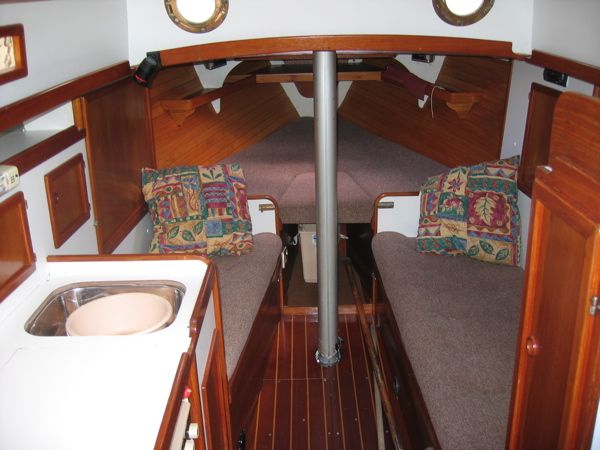

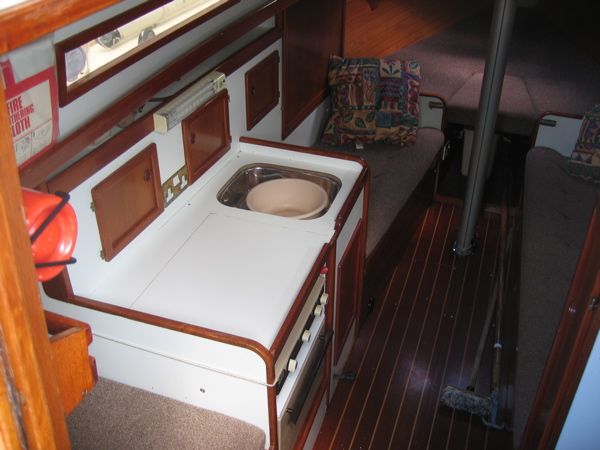

There are 4 berths. Including V berth Fwd, short settee/child's berth to port, settee berth to starboard, quater berth to port aft of galley with Flavel Vanessa gimballed 2 burner gas cooker with oven & grill, s/steel sink with manual fresh water pump and good stowage. Separate head with RM69 manual sea-type WC to starboard. Fold down chart table with chart stowage. Hanging locker. Trumatic gas fired hot air heating system.
* S/steel single roller stemhead fitting.
* Stanchion bases
* Fold down swim ladder
* Blue sprayhood
* Teak hand rails
* Cockpit cushions
* Boat hook
* Mooring warps
* Yacht legs
* Horseshoe lifebuoy
* Dan buoy
* Radar reflector
* 3 x fire extinguishers
* Manual bilge pump
* Delta anchor with 20m chain & 40m warp
